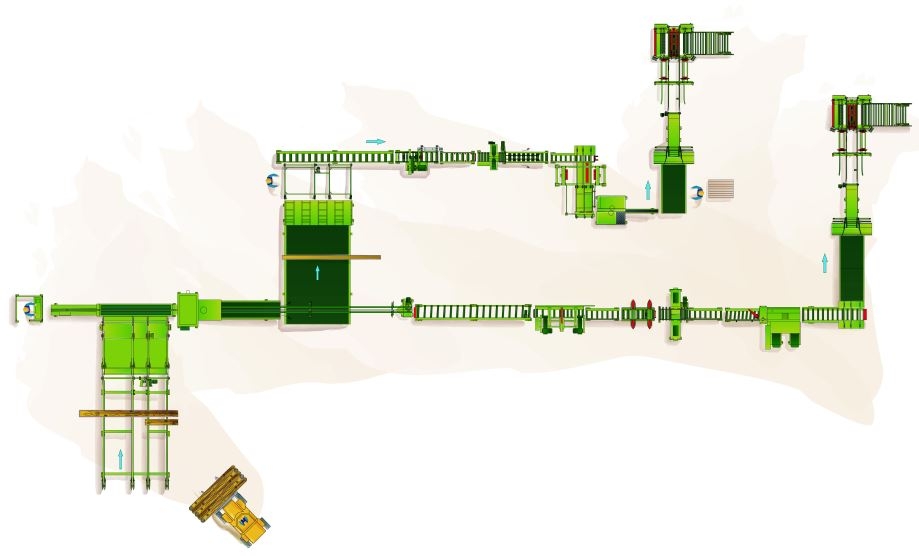

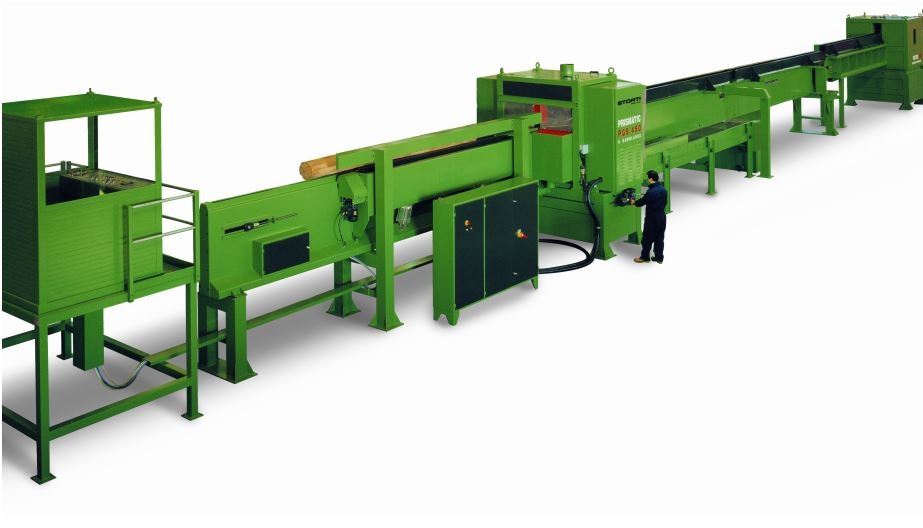

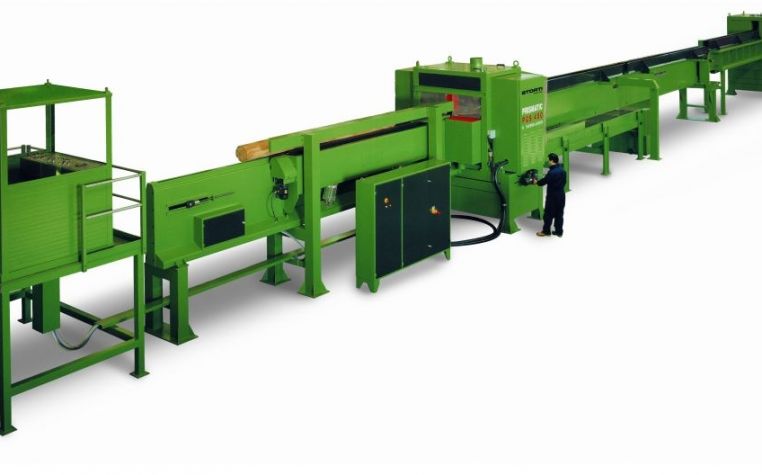

PGS 300/350/450 Sawmill Line
The line for sawing logs with circular blades
The PGS 300/350/450 log sawing systems are exceptionally efficient. They are built for use in industries engaged in the first stage woodworking operations and make it possible to produce products such as boards and stringers using powerful, high-precision circular blades.
Technical data
Dimensions
Diameter min. mm:100 mm
Diameter max. mm:450 mm
Min. length mm:1000 mm
Max. length mm:6000 mm
Number of operators
Min:3
Max:5
Consumption
Kw:600/650 kW (810/880 Hp)
l/h:230.000 l/h
m3/s:17,5/18 m3/s

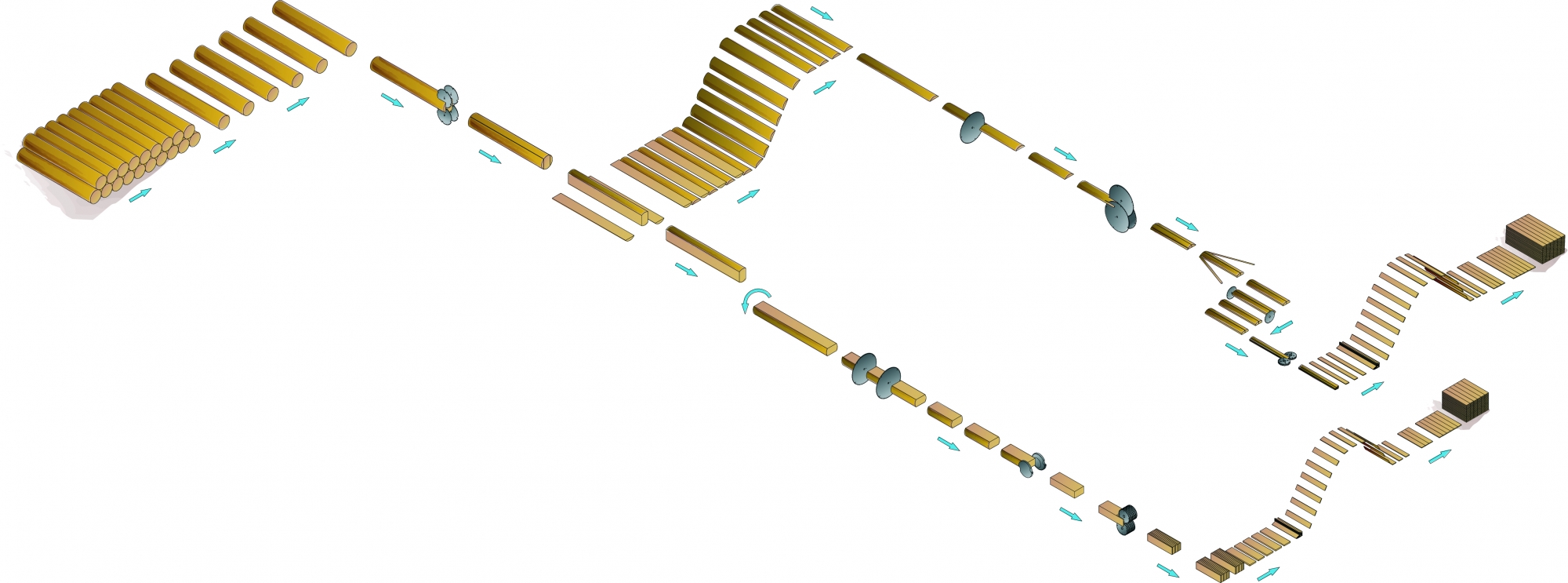

What types of processes can they do?
Due to the line flexibility to accept different types of machinery, the sawing system is capable of providing a wide range of services. This will enable the customer to improve teh production system through the use of a single system that, in additionto sawing can perform other processes such as:
- Slabbing
- Multiblade
- Cross-cutting
- Lateral trimming of slabs (optional)
- Slabbers (optional)
- Stacking (optional)
Why choose this sawmill line?
This is a flexible sawmill system for logs, capable of processing raw material with varying diameters. The advantage is being able to process mixed products in the same run, speeding up the production process and reducing overhead costs.
